Aixtron G10 Components: Key Parts for High-Performance SiC Epitaxy

Silicon Carbide (SiC) technology keeps moving toward larger wafers and higher output. That means advanced epitaxy systems like the Aixtron G10 platform are becoming more and more important in third-generation semiconductor manufacturing.

Compared to older reactors, Aixtron G10 systems need tighter control over thermal fields, gas flow stability, particle contamination, and how long parts last. Every internal reactor component has a direct impact on epitaxial growth quality, wafer uniformity, and production stability.

This article walks you through the main Aixtron G10 Components used in SiC epitaxy systems. We’ll explain what they do, what materials they require, and why they matter in high-temperature semiconductor processing.

What Are Aixtron G10 Components?

Aixtron G10 Components are the key internal reactor parts sitting inside the SiC epitaxy chamber. Together, they help keep thermal conditions stable, optimize gas distribution, support wafer rotation, and cut down on contamination during high-temperature epitaxial growth.

Typical parts you’ll find in an Aixtron G10 reactor include:

• Ceiling
• Distribution Ring
• Cover Ring
• Cover Plates
• Planetary Disc
• Pulldown Cover Disc
• Exhaust Collector
• Supporting Ring
• Support Tube
• Graphite Shutter
• Pin & Pin Washer Assemblies

Most of these parts run continuously at temperatures above 1500°C while being exposed to corrosive process gases like silane and hydrocarbons. So material performance is absolutely critical.

Key Functional Areas Inside the Aixtron G10 Reactor

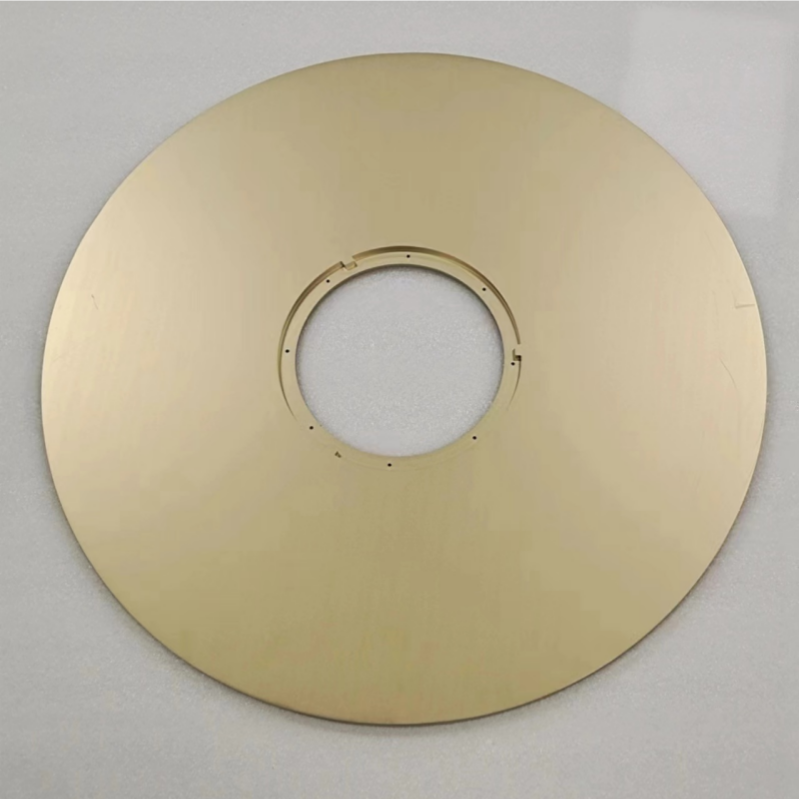

1. Ceiling Components

The Ceiling is a major part of the reactor’s thermal field. It helps keep the chamber temperature stable, guides gas flow, and protects the upper reactor structures from direct heat.

Good ceiling components need to have:

• Solid thermal stability
• Low particle generation
• Strong resistance to corrosion
• Uniform coating quality
• Long-term dimensional stability

CVD SiC coated graphite is a common choice here because it gives you the thermal conductivity of graphite plus the chemical resistance of silicon carbide.

2. Distribution Ring

The Distribution Ring controls and directs gas flow inside the chamber. Getting gas distribution uniform is essential for achieving consistent epitaxial layer thickness across all wafers.

If gas flow isn’t well controlled, you can run into:

• Thickness variation
• Doping inconsistencies
• Surface defects
• Lower wafer yield

That’s why high machining precision and uniform coating are so important for this part.

3. Planetary Disc System

The Planetary Disc is what rotates wafers during epitaxial growth. Smooth rotation improves temperature uniformity and makes sure all wafers get similar gas exposure.

For large-size SiC wafer production, the planetary system needs to maintain:

• Good flatness
• Low thermal deformation
• High structural strength
• Stable operation through repeated heating and cooling

The disc itself is usually made from high-purity graphite with an advanced CVD SiC coating.

4. Cover Rings and Cover Plates

Cover Rings and Cover Plates protect certain reactor areas and help stabilize the thermal field.

These parts help to:

• Reduce unwanted deposition
• Minimize particle contamination
• Protect graphite structures
• Extend chamber lifetime

Since they go through a lot of thermal cycling, strong coating adhesion is a must.

5. Exhaust Collector System

The Exhaust Collector manages exhaust gas flow and helps keep chamber pressure steady.

Stable exhaust flow leads to:

• Better process repeatability
• A cleaner chamber environment
• Less particle buildup
• Longer intervals between maintenance

In advanced SiC epitaxy systems, exhaust-related parts also need to stand up to aggressive chemicals and thermal stress.

Why Material Selection Matters in SiC Epitaxy？

SiC epitaxy is a tough environment. Conventional materials often run into problems like:

• Coating peeling off
• Graphite erosion
• Thermal cracking
• Particle generation
• Short service life

To get around these issues, advanced semiconductor reactors are turning to CVD SiC Coated Graphite. CVD SiC coating gives you:

• Excellent chemical resistance
• High purity
• Great thermal shock resistance
• Low contamination risk
• Long operating life

Right now, this is one of the most widely used materials for high-end SiC epitaxy reactor parts.

TaC (Tantalum Carbide) coating is emerging as the next step for ultra-high-temperature applications. Compared to conventional SiC coatings, TaC coatings offer:

• Better high-temperature stability
• Stronger corrosion resistance
• Lower risk of particle generation
• Stable operation above 2000°C

TaC coatings look especially promising for future platforms that use larger wafers and higher temperatures.

Manufacturing Challenges for Aixtron G10 Components

Making high-quality Aixtron G10 Components takes advanced manufacturing capabilities, including:

• High-purity graphite purification
• Precision CNC machining
• Semiconductor-grade coating environments
• Uniform CVD coating technology
• Large-size component processing
• Strict purity and dimensional control

Even a small deviation in dimensions or coating uniformity can affect reactor stability and epitaxial performance.

VeTek Semiconductor’s Capability for Aixtron G10 Components

VeTek Semiconductor specializes in semiconductor-grade graphite and coating technologies for advanced epitaxy applications.

We offer custom components compatible with:

• Aixtron G10
• Aixtron G5
• SiC epitaxy systems
• MOCVD reactors

Our product range includes:

• CVD SiC coated graphite components
• TaC coating components
• Planetary discs
• Ceiling components
• Cover rings
• Graphite thermal field parts
• Solid SiC components

These products are widely used in SiC epitaxy, LED epitaxy, and advanced semiconductor thermal field systems.

Conclusion

As SiC semiconductor manufacturing pushes toward larger wafers and higher production efficiency, Aixtron G10 Components are becoming more and more important for reactor stability and epitaxial quality.

From ceiling structures and planetary discs to gas distribution and exhaust systems, every component directly affects thermal management, contamination control, and wafer consistency.

By combining high-purity graphite materials, advanced CVD SiC coating technology, and next-generation TaC coatings, modern reactor parts are helping make SiC epitaxy production more stable and efficient for the future semiconductor industry.
