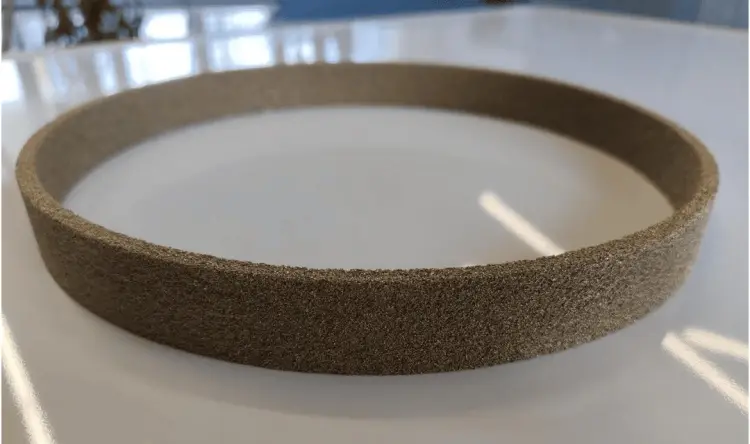

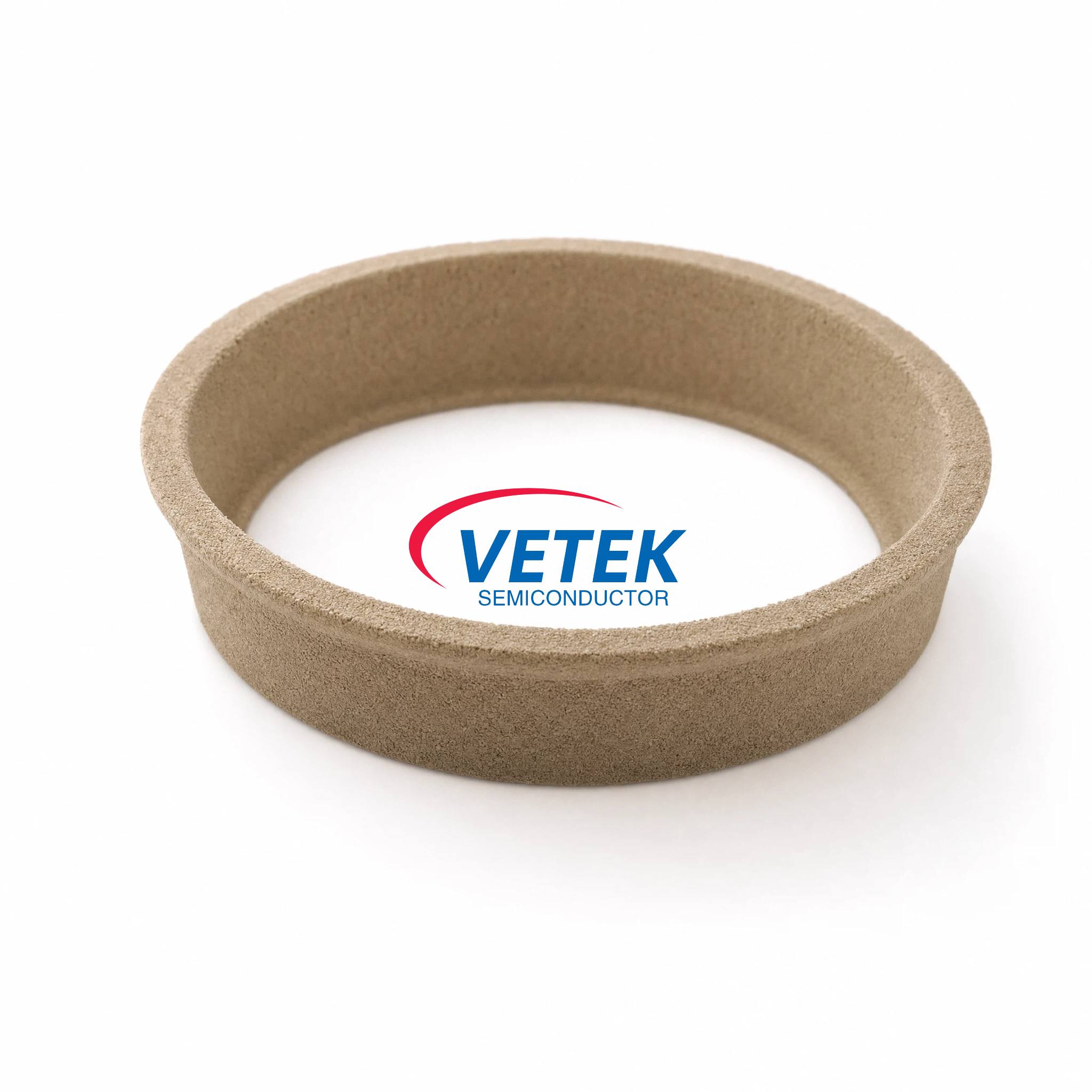

Porous Tantalum Carbide (TaC) Coated Graphite Ring

Product Features

• Core Equipment: Intended for SiC single crystal growth furnaces that operate with PVT technology.
• Primary Application: Suited for thermal field systems in third‑generation semiconductor SiC crystal growth.
• High‑Temperature Stability: The TaC coating retains structural integrity under ultra‑high temperatures, supporting extended operation in demanding thermal environments.
• Corrosion Protection: The dense CVD TaC layer shields the graphite substrate from silicon vapor, carbon‑bearing gases, and other corrosive species encountered during SiC growth.
• Thermal Field Performance: The porous graphite base aids in heat distribution and vapor transport, which helps maintain stable growth conditions.
• Low Contamination: High‑purity starting materials and the dense coating limit impurity release and particle shedding, benefiting crystal quality.
• Extended Lifespan: The TaC layer improves oxidation resistance, surface hardness, and overall durability at elevated temperatures.
• Coating Adhesion: The CVD process yields a strong bond between the TaC film and the graphite substrate.
• Custom Options: Dimensions, structural details, and coating specifications can be adjusted to match different SiC growth furnace requirements.

Technical Specifications

Applications

The VETEK Porous TaC Coated Graphite Ring is primarily used in:

• SiC single crystal growth via PVT
• Third‑generation semiconductor manufacturing
• SiC substrate production
• Thermal field systems in crystal growth furnaces
• High‑temperature semiconductor processing
• Advanced graphite hot‑zone components

FAQ

1. What is a Porous TaC Coated Graphite Ring?

It is a thermal field component for SiC crystal growth furnaces. It combines a porous graphite structure with a CVD TaC coating to deliver thermal management and protection against high‑temperature corrosion.

2. Why use TaC coating for SiC crystal growth?

TaC provides high‑temperature stability and chemical resistance. It shields graphite from silicon vapor attack and helps maintain a clean, stable growth environment.

3. What does the porous graphite structure offer?

The porous design supports thermal distribution and gas transport within the furnace, which contributes to stable SiC crystal growth conditions.

4. Can VETEK produce customized TaC coated graphite rings?

Yes. VETEK offers customization based on customer drawings, furnace designs, and process needs, including dimensions, substrate configuration, and coating parameters.
