Based on the physical sample provided by the customer (even if it is a worn or fractured used part), we offer a full-spectrum service ranging from physical structure reverse engineering to material-level physicochemical characterization. Leveraging semiconductor-grade high-precision inspection equipment, we accurately quantify complex 3D geometric structures, coating/substrate interface properties, and material physical parameters, ensuring that the reverse-engineered product meets or exceeds OEM standards in physical fit, process compatibility, and service life (Form-Fit-Function Replacement).

What We Measure (Technical Deliverables):

  • Dimensional & Geometric Tolerances: Utilizing high-precision Coordinate Measuring Machines (CMM) and optical 3D scanners, we perform full-size point-cloud modeling and reconstruction of complex cavity structures and mounting/locating holes, achieving micron-level accuracy.
  • Surface Micro-Morphology & Flatness: Employing white-light interferometers and optical profilometers to evaluate nanometer-scale surface roughness (Ra) and large-area flatness, meeting wafer-handling and chamber-sealing requirements.
  • Edge Micro-Features: High-magnification mapping of edge R-radii and chamfer micro-profiles to optimize coating climb morphology and avoid stress concentration at sharp corners that can cause high-temperature delamination.
  • Graphite Substrate & Thermal Matching Analysis: Assessment of high-purity graphite substrate density, grain size, and coefficient of thermal expansion (CTE) to ensure thermal-stress matching between substrate and CVD coating.
  • Coating Cross-Section & Interface Bonding Quality: Non-destructive XRF and metallographic cross-section SEM analysis to measure absolute thickness, radial uniformity of the CVD coating, and interface penetration depth.
  • Phase Structure & Micro-Crystal Analysis: XRD evaluation of cubic phase (β-SiC) purity of CVD SiC; qualitative assessment of chemical stoichiometry and crystal structure characteristics of CVD TaC.

Real Case & Customer Benefits (Experience):

A 12-inch semiconductor etching component customer: OEM supply discontinued; only one worn used part was available. Through CMM reverse modeling + SEM coating cross-section analysis, we completed substitute-part development and on-tool testing within 2 months without any original drawings, achieving 100% installation fit. Ultimately, the component procurement cycle was reduced from the original 6-month import lead time to 2 months, unit procurement cost dropped by 42%, and this model has been stably supplied for more than 30 batches.

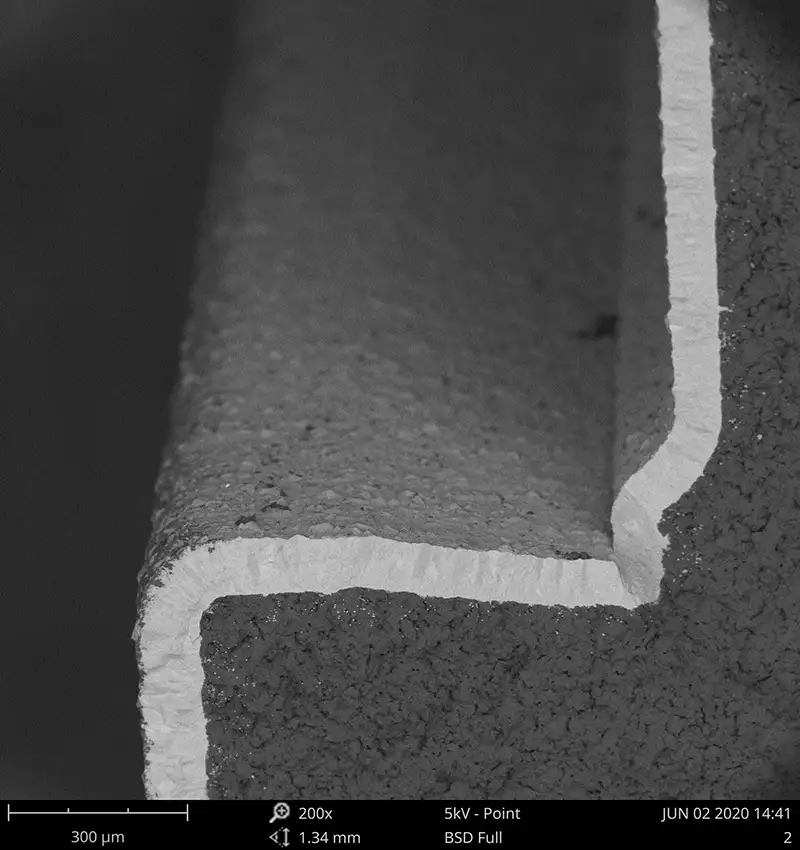

SiC coating cross-section SEM SiC coating cross-section SEM

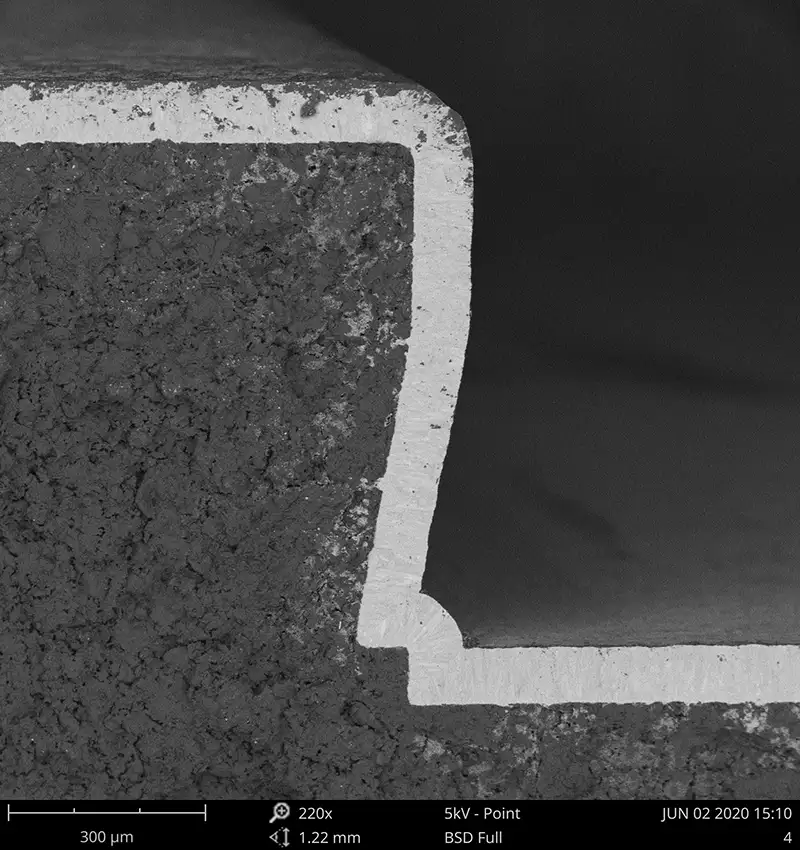

Silicon Carbide (SiC) coating on SEM coating cross-section

FAQ

1. Q: How should I choose between CVD SiC coating and CVD TaC coating?

▼

A: Look at your process temperature and gas-phase corrosion intensity. If the process temperature is below 1000 °C and mainly involves Cl₂/F₂-based etching or conventional epitaxy, choose CVD SiC for the best cost-performance; if the process temperature exceeds 1200 °C and involves strongly corrosive atmospheres (e.g., SiC PVT single-crystal growth), we recommend CVD TaC , which offers superior temperature and corrosion resistance. We can provide a free selection recommendation report based on your specific process parameters.

2. Q: Do you support single-piece / small-batch prototyping? What is the lead time?

▼

A: Yes! For reverse-engineering prototypes, MOQ is 1 piece . For conventional simple parts, from receipt of sample to delivery of the mapped part, the fastest lead time is approximately 10–15 working days ; for parts involving complex coating processes it is approximately 20–25 working days . Contact our engineers for expedited evaluation.

3. Q: What causes CVD coating delamination on graphite parts during use? Can it be solved?

▼

A: 90% of delamination cases are caused by mismatch between the coefficient of thermal expansion (CTE) of the graphite substrate and the coating, leading to fatigue peeling under rapid heating/cooling. Our solution: first precisely measure the CTE curve of your original part, then specially adjust substrate density and deposition temperature gradient so that the two CTEs are highly matched. Bond strength can be improved to more than 1.5 times the industry conventional level.

4. Q: Can you provide a CoA (Certificate of Analysis) for the products? What data does it include?

▼

A: Every shipped product comes standard with a unique serial number + full CoA report . The report includes: critical dimension CMM inspection data, multi-point coating thickness distribution map, surface roughness (Ra) values, and material purity (GDMS) analysis conclusions.
