Carbon Carbon Composite PECVD Pallet
  • Carbon Carbon Composite PECVD PalletCarbon Carbon Composite PECVD Pallet
  • Carbon Carbon Composite PECVD PalletCarbon Carbon Composite PECVD Pallet

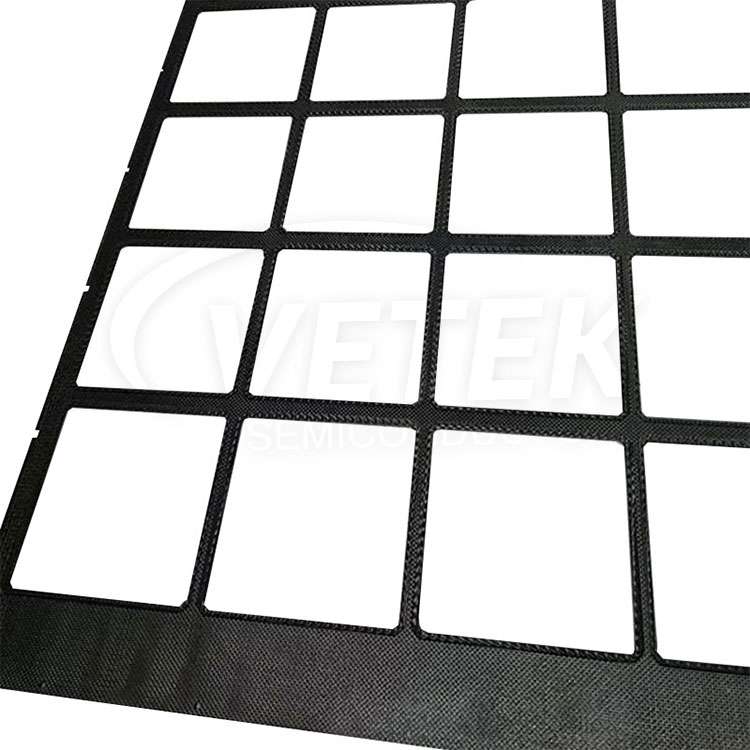

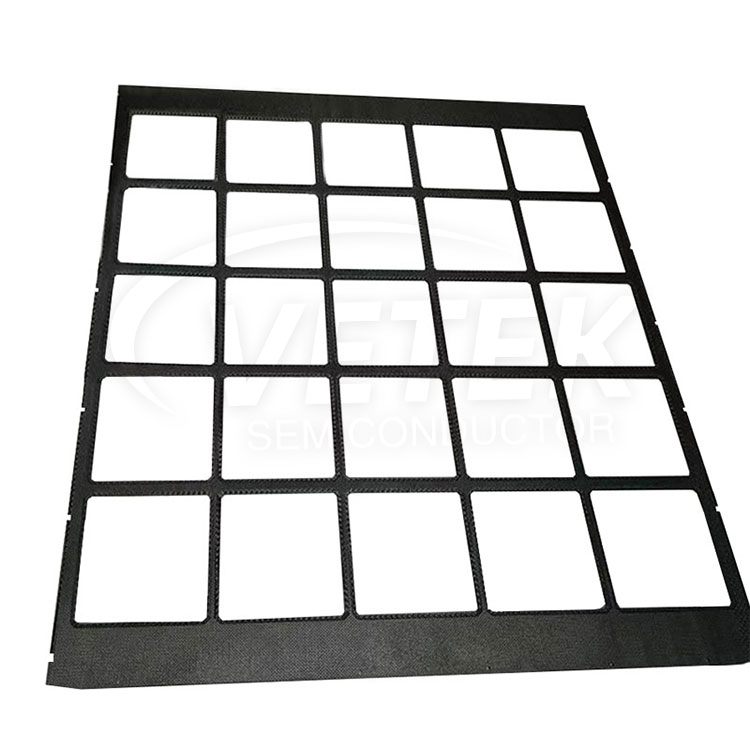

Carbon Carbon Composite PECVD Pallet

VeTek Semiconductor has been focusing on the research and development and production of carbon-based materials for many years. Our Carbon Carbon Composite PECVD Pallet is made of high-density carbon fiber, which has excellent high temperature resistance, good mechanical properties and excellent chemical stability, and plays an irreplaceable role in the photovoltaic PECVD process. We look forward to your inquiry and establishing a long-term strategic partnership with you to jointly promote technological progress and industrial development.
Send Inquiry
Product Description

Carbon Carbon Composite PECVD Pallet

The Carbon Carbon Composite PECVD Pallet made in China from VeTek Semiconductor, which is one of the manufacturers and suppliers in China. Buy Carbon Carbon Composite PECVD Pallet

with low price from our factory. We have our own brands and we also support bulk. Welcome to buy discount product which is newest and high-quality from us.

VeTek Semiconductor Carbon Carbon Composite PECVD Pallet has the characteristics of light weight, high strength and elasticity, the product can withstand the high temperature of 2000℃, and has excellent performance. For PECVD plasma vacuum coating vehicle. VeTek Semiconductor specializes in providing graphite materials and related precision graphite products for electronic semiconductor and solar photovoltaic industry, graphite boat and plate frame for solar cell process equipment (PECVD), polycrystalline silicon ingot furnace hot field, C/C composite materials and graphite felt for thermal insulation and other products


Technical Data of Carbon/Carbon Composite

Technical Data of Carbon/Carbon Composite
Index Unit Value
Bulk density g/cm3 1.40~1.50
Carbon content % ≥98.5~99.9
Ash PPM ≤65
Thermal conductivity (1150℃) W/m.k 10~30
Tensile strength Mpa 90~130
Flexural Strength Mpa 100~150
Compressive strength Mpa 130~170
Shear strength Mpa 50~60
Interlaminar Shear strength Mpa ≥13
Electric resistivity Ω.mm2/m 30~43
Coefficient of Thermal Expansion 106/K 0.3~1.2
Processing Temperature ℃ ≥2400℃
Military quality, full chemical vapor deposition furnace deposition, imported Toray carbon fiber T700 pre-woven 3D needle knitting,
material specifications: maximum outer diameter 2000mm, wall thickness 8-25mm, height 1600mm

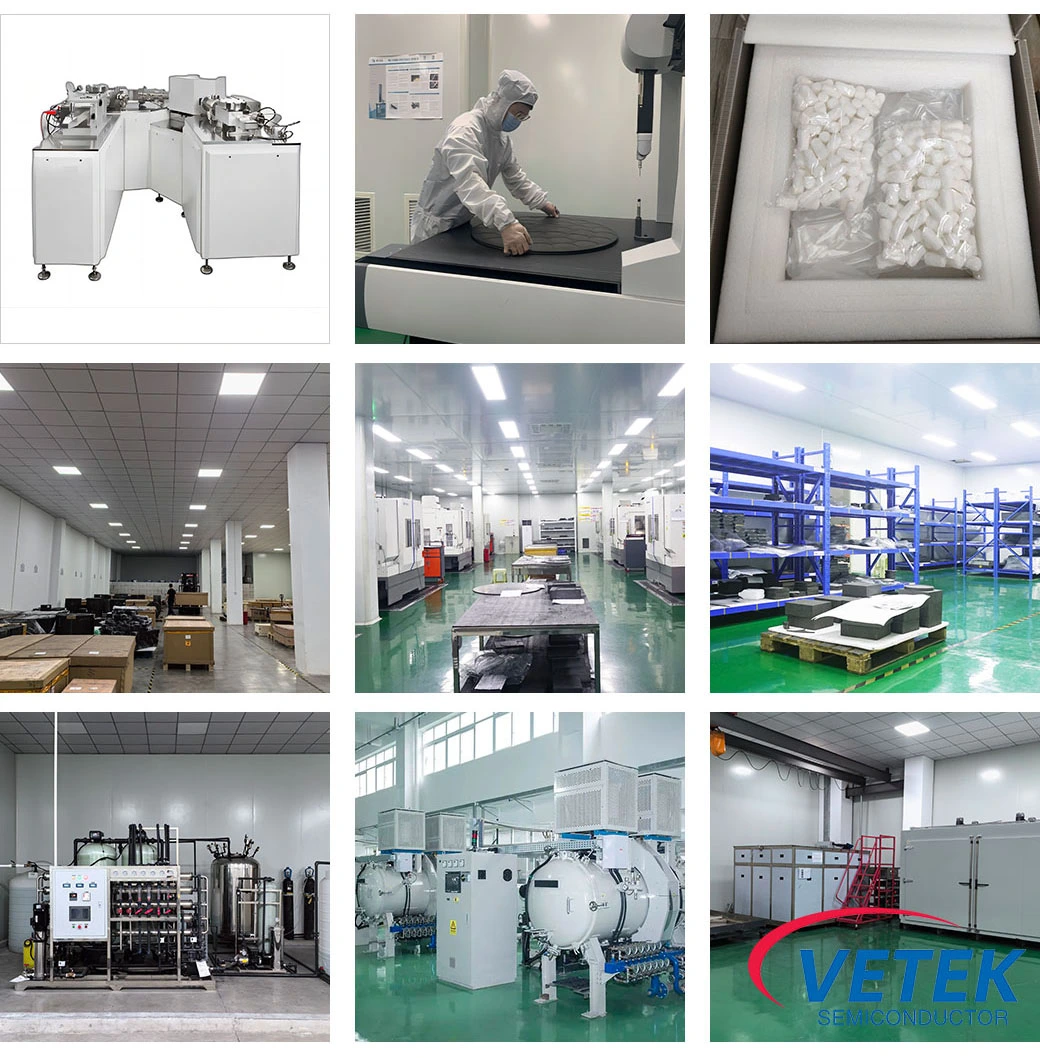

VeTek Semiconductor Production Shop：

VeTek Semiconductor Production Shop
