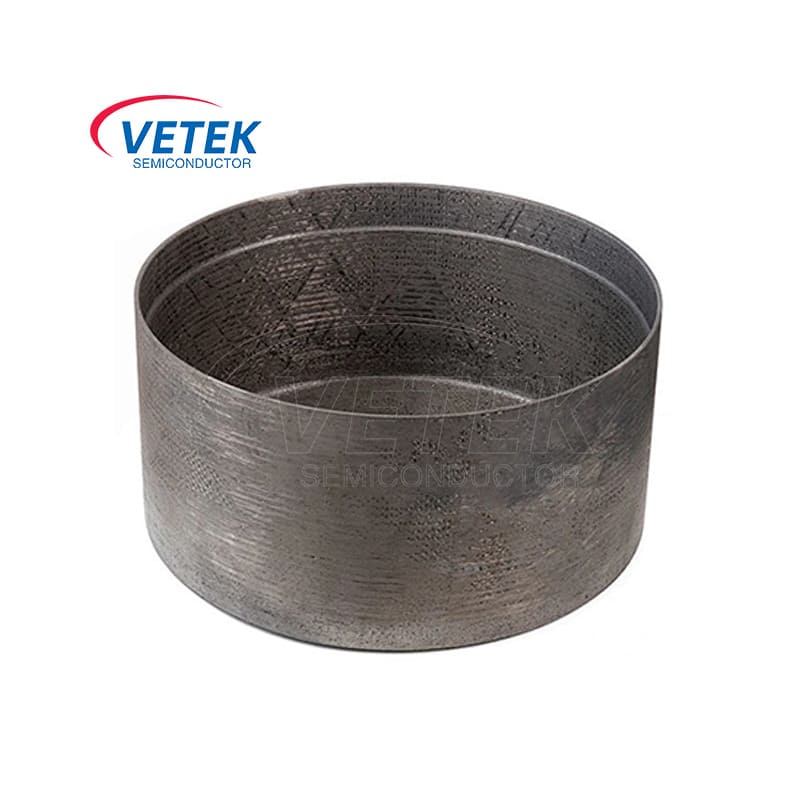

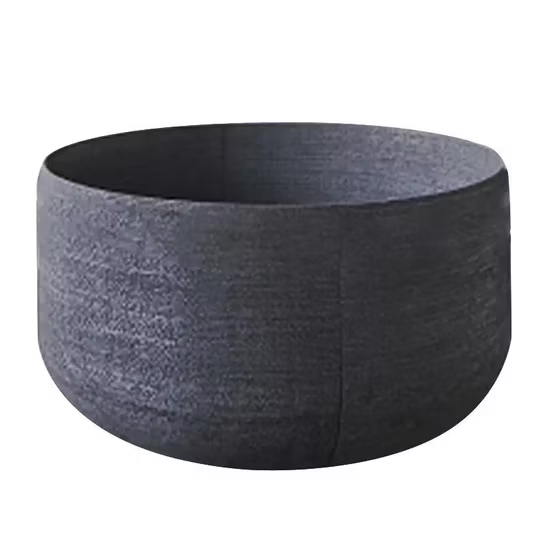

C/C Composite Crucible

Veteksemicon Carbon/Carbon Composite (C/C Composite) is an all-carbon composite material with carbon fiber as the reinforcement and carbon matrix as the core, combining the high strength of carbon fiber and the high temperature resistance of carbon matrix. The material maintains stable performance at high temperatures above 1650°C, with a maximum theoretical temperature resistance of 2600°C. Combined with its special process design and excellent physical properties, the material is capable of maintaining excellent structural stability under extreme thermal and mechanical stress, making it an excellent choice for high-temperature thermal field systems in the semiconductor and photovoltaic fields.

Core Performance Advantages

● High Temperature Resistance: It can work stably at 1800℃-2000℃ for a long time, with excellent thermal shock resistance, avoiding the problem of deformation or cracking of traditional graphite materials at high temperature.

● Excellent mechanical properties: Flexural strength is more than 150MPa (far more than 38-60MPa of graphite), high toughness, not easy to break, to meet the load bearing requirements of large-size parts.

● Optimized thermal performance:

Low thermal conductivity (<30W/(m-K)), reducing the energy consumption of the thermal field system;

Small coefficient of thermal expansion, high dimensional stability, reducing deformation caused by high temperature thermal shock.

Semiconductor applications:

✔ Key components for hot field systems

Ingot casting furnace components: used for high temperature furnace heat insulation panels, heaters, to ensure the stability of the silicon single crystal growth environment;

High purity components: such as semiconductor grade crucibles to avoid impurity contamination and improve silicon wafer yield.

Photovoltaic applications

✔ Monocrystalline Furnace Heat Field Core Components

Crucible: Carry silicon melting, support large-size silicon rods (32-36 inches) production, enhance single furnace feeding capacity to 1900kg;

Conductor/Holding Cylinder: Optimizes airflow distribution in the hot field, reduces heat loss, and saves more than 30% of power consumption.

Why choose VeTeksemicon ?

As a leading manufacturer and supplier of Carbon/Carbon Composites (C/C) in China, VeTekSemicon always strives to provide advanced product solutions to our customers.

For a long time, our C/C composite crucibles have not only met the needs of the industry, but also exceeded market standards in terms of durability, performance stability and ease of operation. This is the core reason why we are highly regarded by many European and American customers for their long-term stable volume purchases, and is the only choice for high-efficiency silicon single crystal production.Veteksemicon sincerely looks forward to being your only partner in China.

VeTek Semiconductor's production shops:
