What are the differences between Isotropic Graphite and Siliconized Graphite?

1. Material Properties and Structural Differences

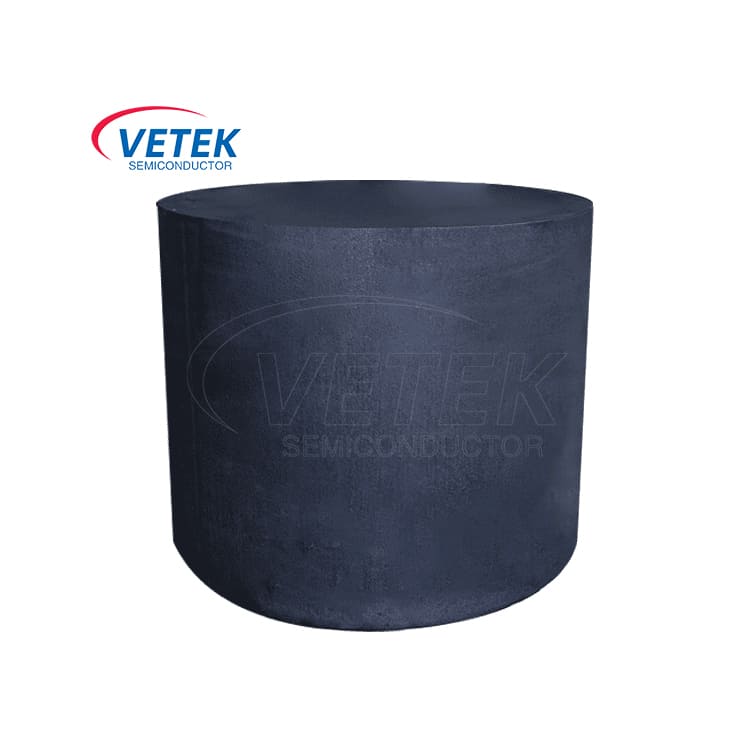

✔ Isotropic Graphite:

●  Isotropic Behavior: Uniform physical properties (e.g., thermal/electrical conductivity, mechanical strength) in all three dimensions (x, y, z), with no directional dependency.

●  High Purity & Thermal Stability: Manufactured via advanced processes like isostatic pressing, offering ultra-low impurity levels (ash content at ppm scale) and enhanced strength at high temperatures (up to 2000°C+).

●  Precision Machinability: Easily fabricated into complex geometries, ideal for semiconductor wafer processing components (e.g., heaters, insulators).

Physical properties of Isostatic graphite
Property	Unit	Typical Value
Bulk Density	g/cm³	1.83
Hardness	HSD	58
Electrical Resistivity	μΩ.m	10
Flexural Strength	MPa	47
Compressive Strength	MPa	103
Tensile Strength	MPa	31
Young' s Modulus	GPa	11.8
Thermal Expansion(CTE)	10-6K-1	4.6
Thermal Conductivity	W·m-1·K-1	130
Average Grain Size	μm	8-10
Porosity	%	10
Ash Content	ppm	≤5 (after purified)

✔ Siliconized Graphite:

●  Silicon Infusion: Infused with silicon to form a silicon carbide (SiC) composite layer, significantly improving oxidation resistance and corrosion durability in extreme environments.

●  Potential Anisotropy: May retain some directional properties from the base graphite, depending on the siliconization process.

●  Adjusted Conductivity: Reduced electrical conductivity compared to pure graphite but enhanced durability in harsh conditions.

Main parameters of Siliconized graphite
Property	Typical Value
Density	2.4-2.9 g/cm³
Porosity	<0.5%
Compressive strength	>400 MPa
Flexural strength	>120 MPa
Thermal conductivity	120 W/mK
Thermal expansion coefficient	4.5×10-6
Elastic modulus	120 GPa
Impact strength	1.9KJ/m²
Water lubricated friction	0.005
Dry friction coefficient	0.05
Chemical stability	Various salts, organic solvents, strong acids (HF, HCl, H₂SO4,HNO₃)
Long-term stable use temperature	800℃ (oxidation atmosphere) 2300℃ (inert or vacuum atmosphere)
Electrical resistivity	120*10-6Ωm

2. Application Scenarios

●  Semiconductor Manufacturing: Crucibles and heating elements in single-crystal silicon growth furnaces, leveraging its purity and uniform thermal distribution.

●  Solar Energy: Thermal insulation components in photovoltaic cell production (e.g., vacuum furnace parts).

●  Nuclear Technology: Moderators or structural materials in reactors due to radiation resistance and thermal stability.

●  Precision Tooling: Molds for powder metallurgy, benefiting from high dimensional accuracy.

●  High-Temperature Oxidation Environments: Aerospace engine components, industrial furnace linings, and other oxygen-rich, high-heat applications.

●  Corrosive Media: Electrodes or seals in chemical reactors exposed to acids/alkalis.

●  Battery Technology: Experimental use in lithium-ion battery anodes to improve lithium-ion intercalation (still R&D-focused).

●  Semiconductor Equipment: Electrodes in plasma etching tools, combining conductivity with corrosion resistance.

3. Performance Advantages and Limitations

✔ Isotropic Graphite

Strengths:

●  Uniform Performance: Eliminates directional failure risks (e.g., thermal stress cracks).

●  Ultra-High Purity: Prevents contamination in sensitive processes like semiconductor fabrication.

●  Thermal Shock Resistance: Stable under rapid temperature cycling (e.g., CVD reactors).

Limitations:

●  Higher production costs and stringent machining requirements.

✔ Siliconized Graphite

Strengths:

●  Oxidation Resistance: SiC layer blocks oxygen diffusion, extending lifespan in high-heat oxidative environments.

●  Enhanced Durability: Improved surface hardness and wear resistance.

●  Chemical Inertness: Superior resistance to corrosive media vs. standard graphite.

Limitations:

●  Reduced electrical conductivity and higher manufacturing complexity.

4. Summary

✔ Isotropic Graphite:

Dominates applications requiring uniformity and purity (semiconductors, nuclear tech).

✔ Siliconized Graphite:

Excels in extreme conditions (aerospace, chemical processing) due to silicon-enhanced durability.
