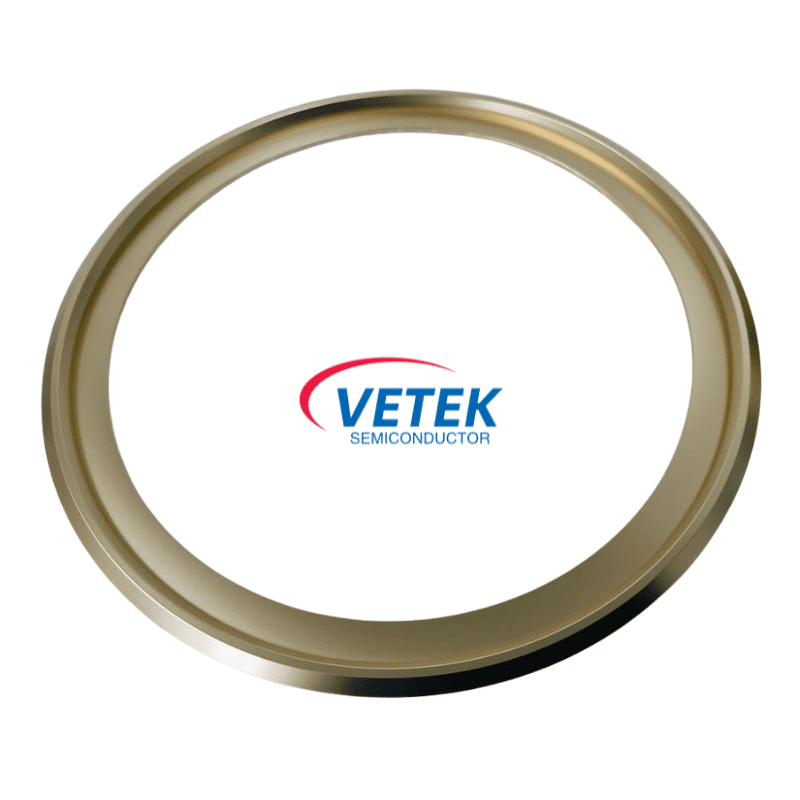

TaC Coated Graphite Guide Ring

The TaC (Tantalum Carbide) coated graphite guide ring is a critical component used in semiconductor manufacturing, specifically in processes like epitaxial deposition and plasma etching. These rings are designed to securely hold and position silicon wafers, ensuring precise alignment and stability during high-temperature and harsh chemical environments. Our guide rings are engineered to meet the stringent demands of modern semiconductor fabrication, helping to improve process yields and wafer quality.

Material Composition and Physical Properties

The core of our TaC Coated Graphite Guide Ring is a high-purity graphite ring, which is then coated with a layer of Tantalum Carbide (TaC).

Graphite Substrate:

The graphite provides several key advantages. It has excellent thermal stability, resisting deformation at the high temperatures common in semiconductor processing. Its lightweight nature minimizes thermal mass, allowing for rapid heating and cooling cycles. High-purity graphite also prevents contamination of the process chamber.

CVD TaC Coating:

The Tantalum Carbide coating is the key to the ring's superior performance. TaC is an extremely hard ceramic material, offering exceptional wear resistance and chemical inertness. It protects the underlying graphite from aggressive plasma and corrosive gases, significantly extending the ring's lifespan. This coating also prevents particles from shedding, which is crucial for maintaining a clean process environment and preventing defects on the wafer surface.

The Role of Guide Rings in Wafer Processing

Our TaC coated guide ring plays a vital role in ensuring the quality and efficiency of semiconductor fabrication.

● Wafer Alignment and Stability: During epitaxial growth or etching, the guide ring holds the wafer in a precise position. This prevents the wafer from shifting, which is essential for uniform layer deposition and accurate pattern transfer across the entire wafer surface.

● Thermal Management: The thermal properties of the graphite and Tantalum Carbide Coating enable efficient heat distribution and management. This is critical for maintaining a uniform temperature profile across the wafer, which is necessary for consistent film thickness and material properties.

● Contamination Control: The high-purity materials and the durable TaC coating minimize particle generation and outgassing. This reduces the risk of wafer contamination and defects, leading to higher device yield and reliability.

● Extended Component Lifespan: The robust Tantalum Carbide coating provides excellent resistance to plasma erosion and chemical attack. This extends the operational life of the guide ring, reducing maintenance downtime and lowering the total cost of ownership.
